Apach Pneumatic Coil Nailer

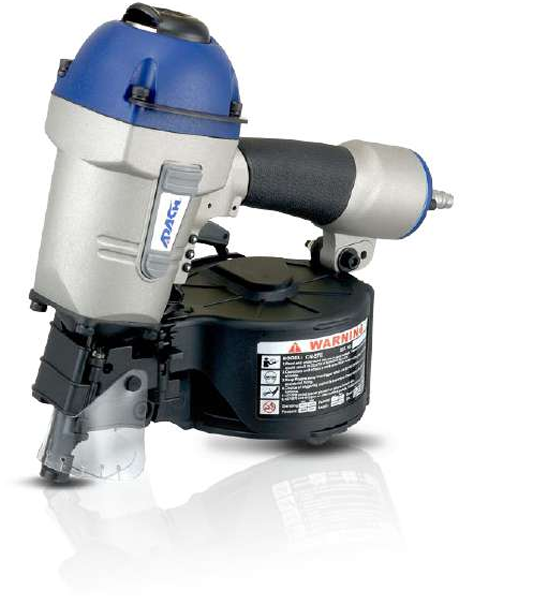

Apach CN57E Pneumatic Coil Nailer
The APACH Pneumatic Coil Nailer is a high-performance air-powered fastening tool designed for heavy-duty industrial applications. Engineered for durability and precision, it delivers fast and consistent nailing performance, making it ideal for pallet manufacturing, wooden packaging, construction, and furniture production.
Compatible Fasteners
| Specification | Details |
|---|---|
| Fastener Type | 15° Wire Collated Coil Nails |
| Compatible Nail Length | 25–57 mm (1″–2¼”) |
| Nail Diameter | 2.1–2.3 mm (0.083″–0.090″) |
| Coil Wire Diameter | 5.0–6.0 mm (0.197″–0.236″) |
Key Features
- Robust and durable industrial-grade construction
- High-speed nailing for increased productivity
- Lightweight and ergonomic design for operator comfort
- Easy loading coil magazine
- Low maintenance operation
- Consistent and accurate nail placement
- Powerful pneumatic performance
- Suitable for continuous production environments
- Safety trigger mechanism for secure operation
- Reduced operator fatigue during long working hours.
Additonal Information
| Specification | Value |
|---|---|
| Weight | 2.5 kg (5.5 lbs) |
| Dimensions | 285 × 135 × 285 mm |
| Operating Pressure | 5–7 kg/cm² (70–100 psi) |
| Magazine Capacity | 300–400 Nails |

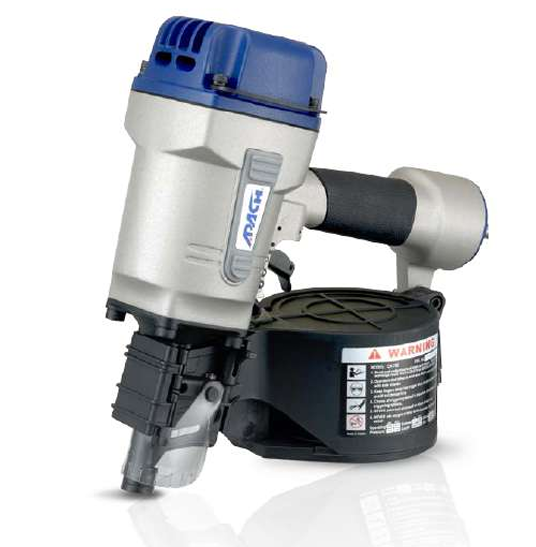

Apach CN70E Pneumatic Coil Nailer
The APACH Pneumatic Coil Nailer is a compact, high-performance fastening tool designed for industrial woodworking, pallet manufacturing, packaging, and construction applications. Featuring a durable aluminum alloy body and a high-capacity coil magazine, this nailer delivers fast, precise, and reliable fastening performance while ensuring operator comfort and long-lasting durability.
With its lightweight design and efficient pneumatic system, the APACH Pneumatic Coil Nailer is ideal for continuous production environments where speed and accuracy are essential.
Compatible Fasteners
| Specification | Details |
|---|---|
| Fastener Type | 15° Flat Wire Collated Coil Nails |
| Compatible Nail Length | 45–70 mm (1¾”–2¾”) |
| Nail Diameter | 2.3–2.9 mm (0.090″–0.113″) |
| Coil Wire Diameter | 5.7–7.0 mm (0.224″–0.276″) |
Key Features
- Lightweight and compact design for easy handling
- Heavy-duty aluminum alloy body for superior durability
- High-capacity magazine holds 225–300 nails
- Operates efficiently at 70–100 PSI
- High-speed and accurate fastening performance
Additonal Information
| Specification | Details |
|---|---|
| Brand | APACH |
| Tool Type | Pneumatic Coil Nailer |
| Weight | 3.62 kg (7.96 lbs) |
| Dimensions (L × W × H) | 320 × 125 × 318 mm (12 5/8″ × 4 7/8″ × 12 1/2″) |
| Operating Pressure | 5–7 kg/cm² (70–100 PSI) |
| Magazine Capacity | 225–300 Nails |
| Power Source | Compressed Air |
| Body Material | High-Strength Aluminum Alloy |
| Handle | Ergonomic Non-Slip Rubber Grip |

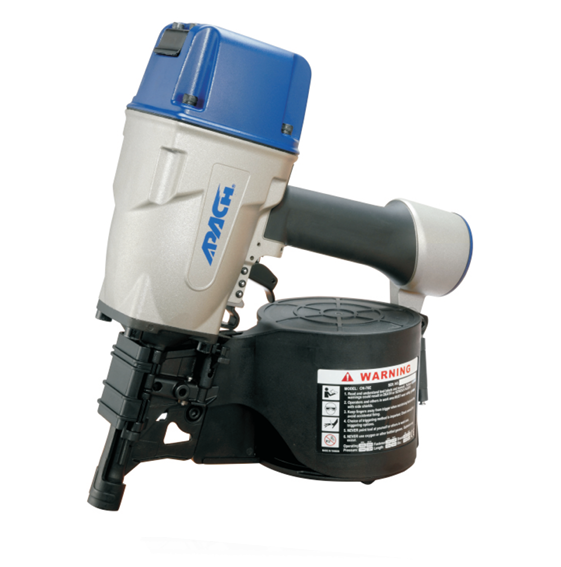

Apach CN83 Pneumatic Coil Nailer
The APACH Pneumatic Coil Nailer is a heavy-duty industrial fastening tool engineered for high-speed and continuous nailing applications. Built with a durable aluminum body and ergonomic design, it delivers reliable performance for pallet manufacturing, wooden packaging, construction, and woodworking industries.
Compatible Fasteners
| Specification | Details |
|---|---|
| Fastener Type | 15° Flat Wire Collated Coil Nails |
| Compatible Nail Length | 50–83 mm (2″–3¼”) |
| Nail Diameter | 2.5–3.3 mm (0.099″–0.131″) |
| Coil Wire Diameter | 6.0–7.5 mm (0.236″–0.295″) |
-
Key Features
- Heavy-duty industrial-grade construction
- High-capacity coil magazine for extended operation
- Powerful pneumatic performance
- Ergonomic grip for comfortable handling
- Lightweight yet durable design
- Fast and accurate nail driving
- Reduced downtime with easy nail loading
- Suitable for continuous production environments
- Low maintenance operation
- Consistent fastening performance
Additional Information
| Specification | Details |
|---|---|
| Tool Type | Pneumatic Coil Nailer |
| Weight | 3.7 kg (8.2 lbs) |
| Dimensions (L × W × H) | 313 × 129 × 349 mm |
| Dimensions (Imperial) | 12 5/16″ × 5 1/16″ × 13 3/4″ |
| Operating Pressure | 5 – 7 kg/cm² |
| Operating Pressure (Imperial) | 70 – 100 PSI |
| Magazine Capacity | 225 – 300 Nails |
| Power Source | Compressed Air |
| Fastener Type | Coil Nails |
| Application | Industrial Fastening & Woodworking |

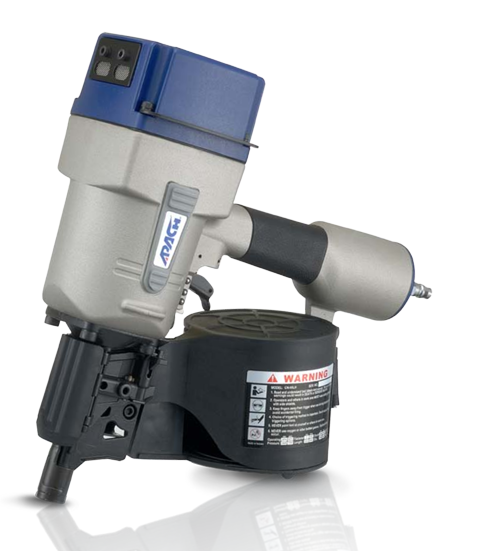

Apach CN90LH Pneumatic Coil Nailer
The APACH Pneumatic Coil Nailer is a heavy-duty industrial fastening tool engineered for high-speed and precision fastening in construction, pallet manufacturing, packaging, and woodworking applications. Built with a durable aluminum alloy body and a high-capacity coil magazine, it delivers exceptional performance, reliability, and long service life in demanding industrial environments.
Designed for continuous operation, the APACH Pneumatic Coil Nailer offers smooth nail feeding, reduced operator fatigue, and maximum productivity, making it an ideal choice for professional contractors and manufacturing industries.
Compatible Fasteners
| Specification | Details |
|---|---|
| Fastener Type | 15° Flat Wire Collated Coil Nails |
| Compatible Nail Length | 50–90 mm (2″–3½”) |
| Nail Diameter | 2.5–3.3 mm (0.099″–0.131″) |
| Coil Wire Diameter | 6.5–7.7 mm (0.256″–0.303″) |
Key Features
- Heavy-duty industrial pneumatic coil nailer
- Durable aluminum alloy construction for extended service life
- High-capacity magazine holds 225–300 nails
- Operates efficiently at 70–100 PSI
- Ergonomic non-slip rubber handle for enhanced comfort
Additional Information
| Specification | Details |
|---|---|
| Brand | APACH |
| Tool Type | Pneumatic Coil Nailer |
| Weight | 4.32 kg (9.51 lbs) |
| Dimensions (L × W × H) | 360 × 130 × 350 mm |
| Operating Pressure | 70–100 PSI (5–7 kg/cm²) |
| Magazine Capacity | 225–300 Nails |
| Power Source | Compressed Air |
| Body Material | High-Strength Aluminum Alloy |

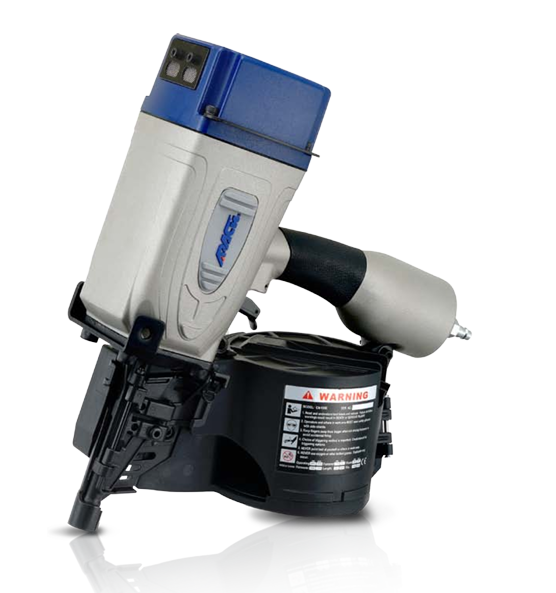

Apach CN100E Pneumatic Coil Nailer
The APACH Pneumatic Coil Nailer is a professional-grade heavy-duty fastening tool designed for high-speed and precision fastening in industrial woodworking, construction, pallet manufacturing, and packaging applications. Built with a rugged aluminum alloy body and a high-capacity coil magazine, it delivers outstanding durability, consistent fastening performance, and maximum productivity even in demanding work environments.
Its ergonomic design, powerful pneumatic system, and smooth nail feeding mechanism make it the ideal choice for professionals requiring continuous, high-volume fastening.
Compatible Fasteners
| Specification | Details |
|---|---|
| Fastener Type | 15° Flat Wire Collated Coil Nails |
| Compatible Nail Length | 65–100 mm (2½”–4″) |
| Nail Diameter | 2.5–3.3 mm (0.099″–0.131″) |
| Coil Wire Diameter | 6.5–7.5 mm (0.256″–0.295″) |
Key Features
- Smooth nail feeding mechanism reduces jamming
- Powerful pneumatic motor for continuous operation
- Balanced design minimizes operator fatigue
- Quick-loading coil magazine increases productivity
Additional Information
| Specification | Details |
|---|---|
| Brand | APACH |
| Tool Type | Pneumatic Coil Nailer |
| Weight | 5.36 kg (11.8 lbs) |
| Dimensions (L × W × H) | 355 × 141 × 412 mm (14″ × 5½” × 16 7/32″) |
| Operating Pressure | 5–7 kg/cm² (70–100 PSI) |
| Magazine Capacity | 200–300 Nails |
| Power Source | Compressed Air |
| Body Material | High-Strength Aluminum Alloy |
| Handle | Ergonomic Non-Slip Rubber Grip |

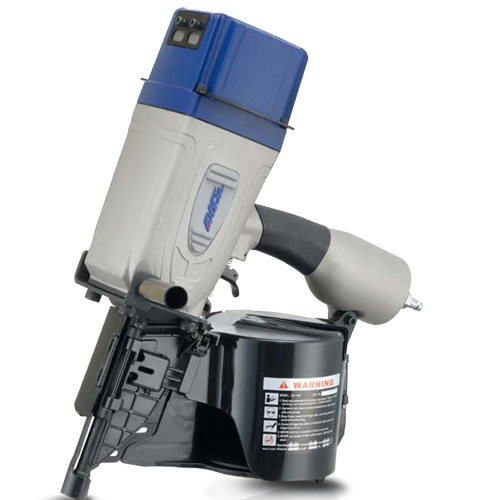

Apach CN130 Pneumatic Coil Nailer
The APACH Pneumatic Coil Nailer is a high-performance industrial fastening tool engineered for heavy-duty applications in construction, pallet manufacturing, timber framing, and woodworking. Designed with a durable aluminum alloy body and a precision-engineered pneumatic system, this nailer delivers fast, powerful, and reliable fastening performance for continuous industrial use.
Its ergonomic handle, high-capacity coil magazine, and robust construction make it an ideal solution for professionals seeking efficiency, durability, and reduced downtime.
Compatible Fasteners
| Specification | Details |
|---|---|
| Fastener Type | 15° Flat Wire Collated Coil Nails |
| Compatible Nail Length | 90–130 mm (3½”–5″) |
| Nail Diameter | 3.05–3.8 mm (0.120″–0.150″) |
| Coil Wire Diameter | 7.0–8.0 mm (0.276″–0.315″) |
Key Features
- Heavy-duty pneumatic coil nailer for industrial and construction applications
- Durable aluminum alloy body ensures long service life
- High-performance pneumatic motor for fast and consistent fastening
- Operates efficiently between 80–120 PSI
- Magazine capacity of 180 nails for extended operation
- Ergonomic non-slip rubber grip for comfortable handling
Addtional Information
| Specification | Details |
|---|---|
| Brand | APACH |
| Tool Type | Pneumatic Coil Nailer |
| Weight | 5.7 kg (12.54 lbs) |
| Dimensions (L × W × H) | 354 × 149 × 473 mm (14″ × 5 7/8″ × 18 5/8″) |
| Operating Pressure | 5.5–8 kg/cm² (80–120 PSI) |
| Magazine Capacity | 180 Nails |
| Power Source | Compressed Air |
| Body Material | High-Strength Aluminum Alloy |
| Handle | Ergonomic Non-Slip Rubber Grip |
